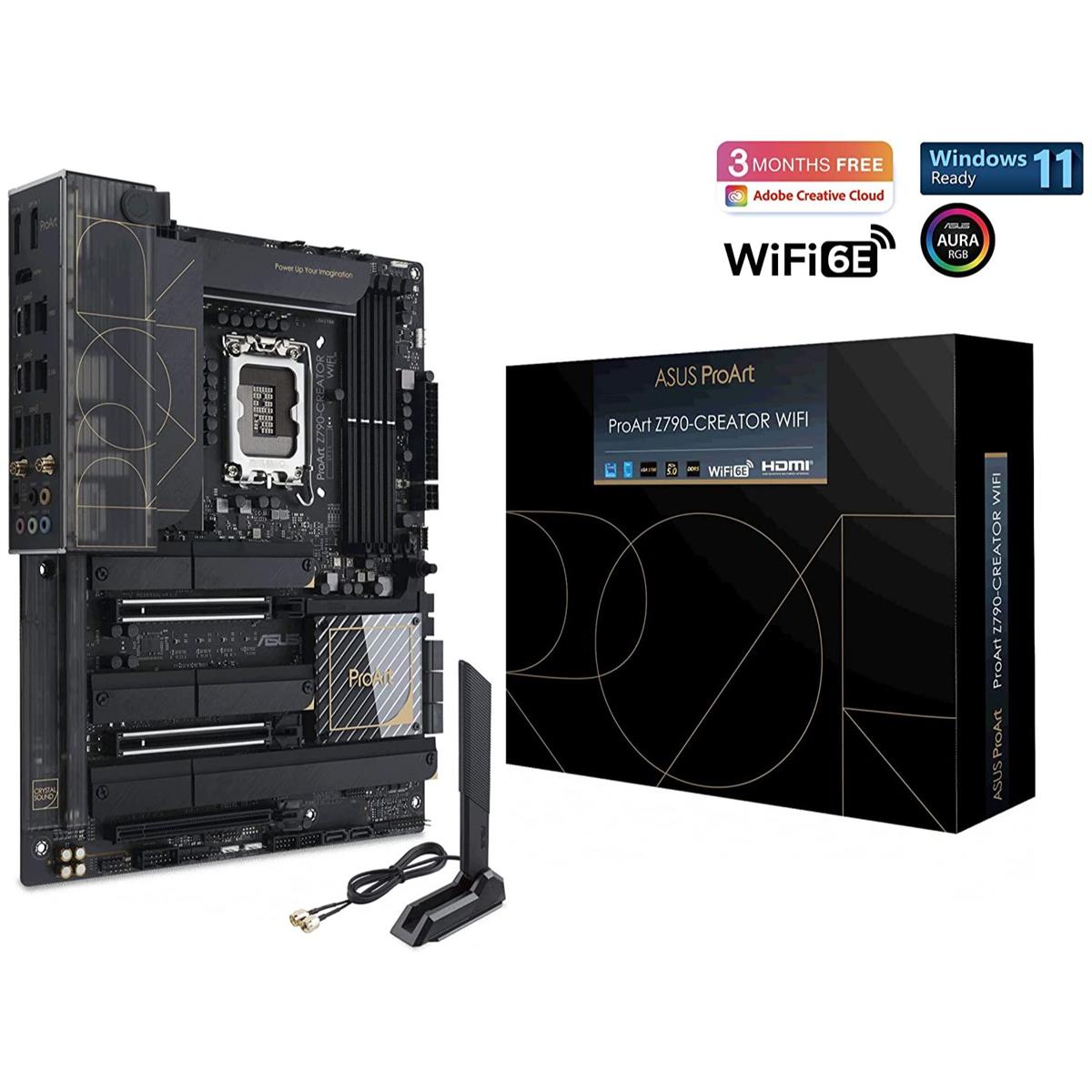

ProArt Z790-Creator WIFI
The ProArt Z790-Creator WiFi empowers creators of all levels by maximizing the performance of 13th & 12th Gen Intel Core processors with 16+1 teamed power stages, DDR5, PCIe 5.0, and lightning-fast connectivity including Thunderbolt 4 (USB4 compliant), 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.
- Intel Socket LGA 1700 for 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Future-proofed connectivity: Two Thunderbolt 4 (USB4 compliant) ports, 10 Gb & 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots and USB 3.2 Gen 2x2 front panel connector with Quick Charge4+ up to 60W
- Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
- Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling II, CreationFirst and Two-Way AI Noise-Cancelation
- Comprehensive thermal design: Massive VRM and chipset heatsinks, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header
- DIY-Friendly design: PCIe Slot Q-Release, M.2 Q-Latch, SafeSlot, SafeDIMM, pre-mounted I/O shield, BIOS FlashBack, Q-Connector
- Advanced security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Thunderbolt 4 ports (USB4 compliant)
Get immersed in your creations with two Thunderbolt 4 ports connect to all your content creation gadgets and enable up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K colour-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort-in port at the back I/O and direct the video output via the Thunderbolt 4 port.
Ultrafast Networking, WiFi 6E
Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band, providing up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds along with improved capacity and better performance in dense wireless environments.
10 Gb & 2.5 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
PCIe 5.0 Expansion Slots
Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.
Ultrafast M.2 Storage
Four PCIe 4.0 M.2 slots support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.
USB 3.2 Gen 2x2 Type-C Front-panel Connector with Quick Charge 4+
USB 3.2 Gen 2x2 boosts data transfers with speeds of up to 20 Gbps. This header also features Quick Charge 4+ technology that can quickly charge your pen display, tablet or mobile phone up to 60 watts by using a PCIe power supply cable plugged into the nearby 6-pin connector.
The Core of Your Powerful Workstation
- 16+1 teamed power stages
- The ASUS Digi+ voltage-regulator
- ProCool II power connector
- Chokes & capacitors
Performance Boost
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and pushes the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Unleash DDR5 with AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.
