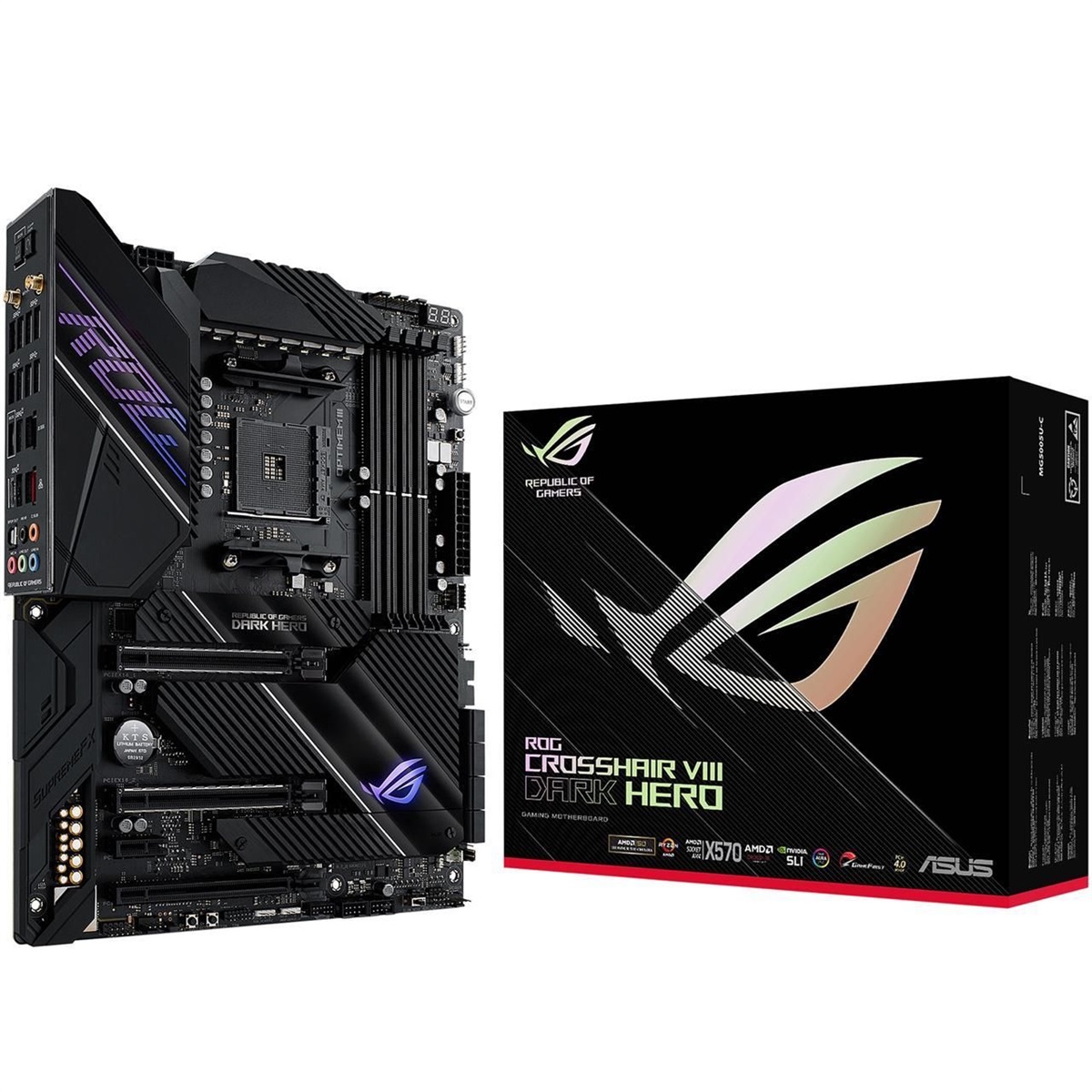

ROG Crosshair VIII Dark Hero
AMD X570 ATX gaming motherboard with PCIe 4.0, 16 power stages, OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps Ethernet, USB 3.2, SATA, M.2, and Aura Sync RGB lighting
• AMD AM4 socket: Ready for AMD Ryzen 5000 Series/ 4000 GSeries/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
• Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
• Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
• High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
• 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
• DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
• Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
• Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS ES9023P to deliver high-fidelity audio to headsets and exotic cans.
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current while maintaining exemplary thermal performance.
• Dual 8-pin ProCool II power connector
• 14+2 power stage
• MicroFine alloy chokes
• 10K Japanese-made black metallic capacitors
Cooling Heatsinks
• VRM heatsink
• High-conductivity thermal pad
• M.2 heatsink
• Passive chipset heatsink
ASUS Optimem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
Networking
• Onboard WiFi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense WiFi environments, providing exceptional online gaming experiences.
• 2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
• ROG Crosshair VIII Dark Hero features the latest Intel Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power
Storage
• Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzen 5000 and 3000 Series desktop processors.
• AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
Audio
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide the best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS ES9023P digital-toanalog converter for superior frontpanel output, and a Texas Instruments RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.
• Audio Line Shielding
• ESS ES9023P
• S1220 Codec
• Switching MOSFETS
• Nichicon CAPS
