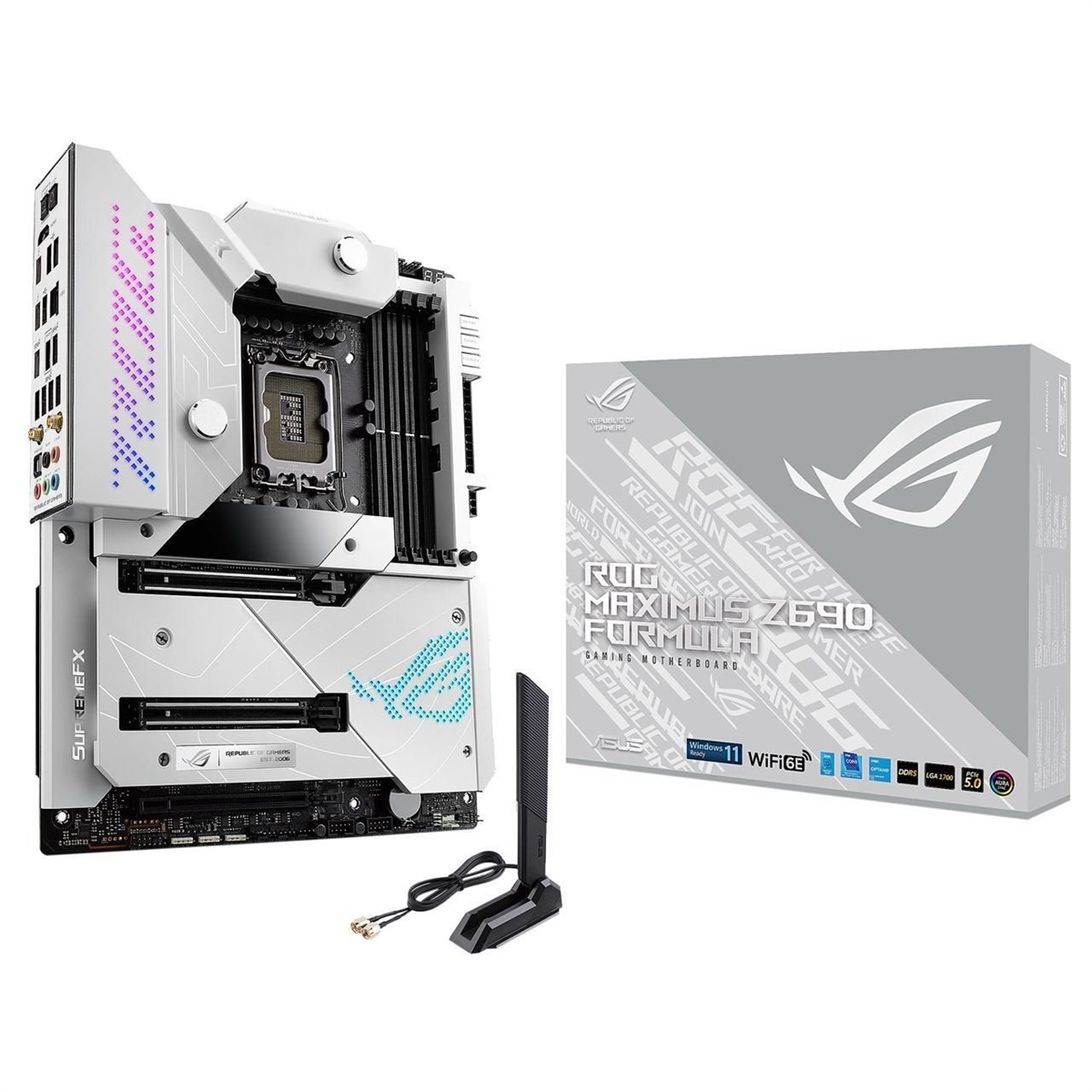

ROG MAXIMUS Z690 FORMULA
Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2x2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting
• Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
• Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration
• Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
• Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone
• High-Performance Networking: Onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, and ASUS LANGaurd
• Fastest Connectivity: PCIe® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2x2 front-panel connector and dual Thunderbolt™ 4 USB Type-C® ports
• Industry-Leading Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for pinpoint positioning and dynamics
• Unmatched Personalization: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
• DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder
• Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
