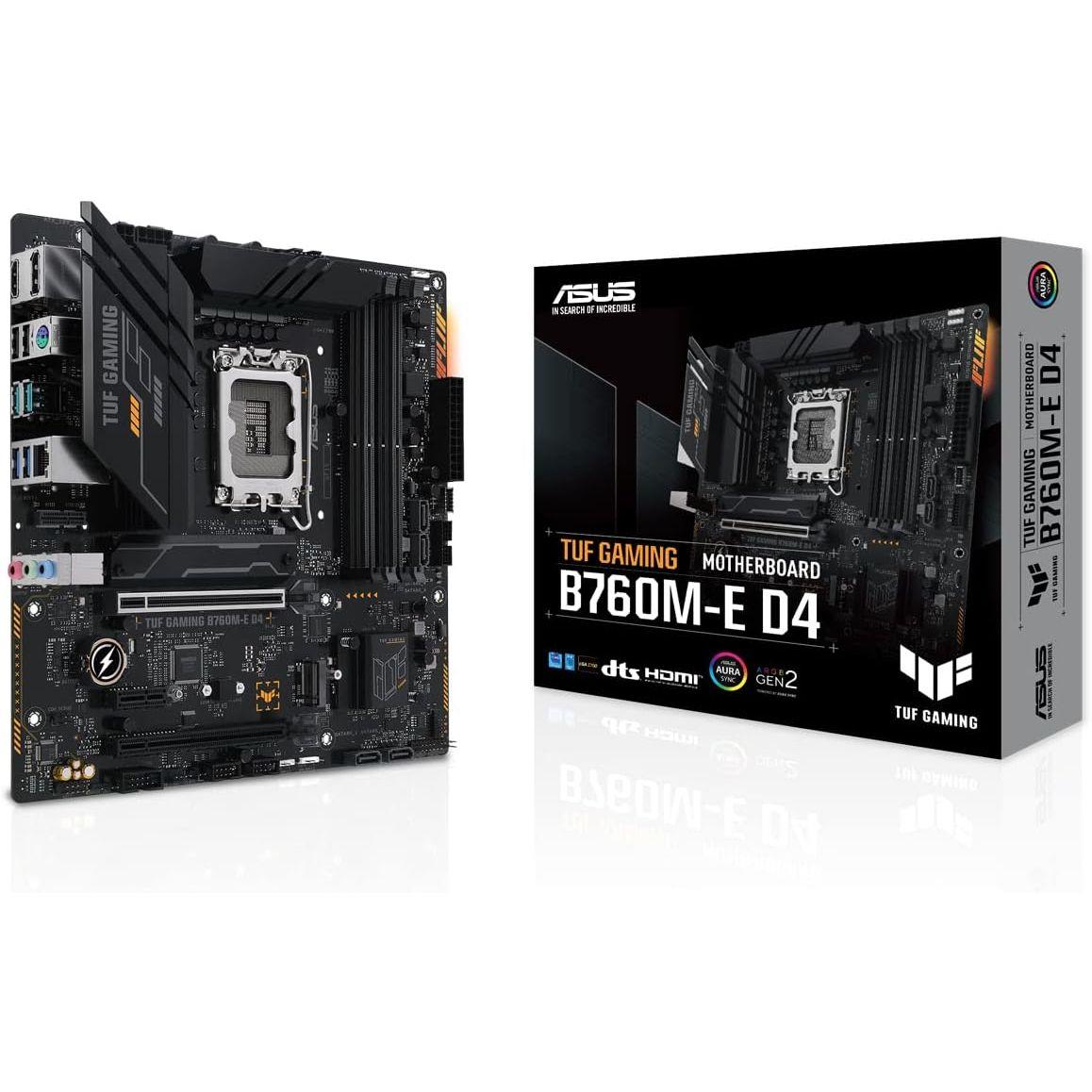

TUF GAMING B760M-E D4
ASUS TUF GAMING B760-PLUS WIFI, an Intel B760 (LGA 1700) mATX motherboard with DDR4, PCIe 4.0, two M.2 slots, 10+1 DrMOS, Realtek 2.5Gb Ethernet, M.2 slot (Key E) for Wi-Fi ready, DisplayPort, HDMI, Rear USB 3.2 Gen 2 Type-A, Front USB 3.2 Gen 2 Type-C, Arua Sync
• Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
• Comprehensive cooling: Enlarged VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ utility
• Latest connectivity: PCIe 4.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2 Type-A, front panel header for USB 3.2 Gen 2 Type-C
• Made for online gaming: M.2 slot (Key E) for Wi-Fi ready, Realtek 2.5Gb Ethernet, TUF LANGuard
• Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
All-Around Energy Efficiency
The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
DrMOS Power Stages
10+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
Six-Layer PCB Design
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
DRAM Overclocking Performance
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
PCIe 4.0 Support
The two PCIe 4.0 M.2 slots support up to two 2280 devices and the data-transfer speeds are up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
Cooler By Design
1. Enlarged VRM Heatsink
The extensive surface area of this heatsink covers the VRMs and chokes to improve heat dissipation.
2. Flexible M.2 Heatsink
TUF GAMING B760M-E D4 has a flexible M.2 heatsink to use on more M.2 slots and keep the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Connectivity
The TUF GAMING B760M-E D4 reaches better of performance potential with the PCI Express 4.0, while an arsenal of USB ports includes one Type-C connections expands compatibility and bandwidth even further.
TUF Gaming Alliance
Build With Confidence
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
TUF Protection
SafeSlot Core+ & SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
