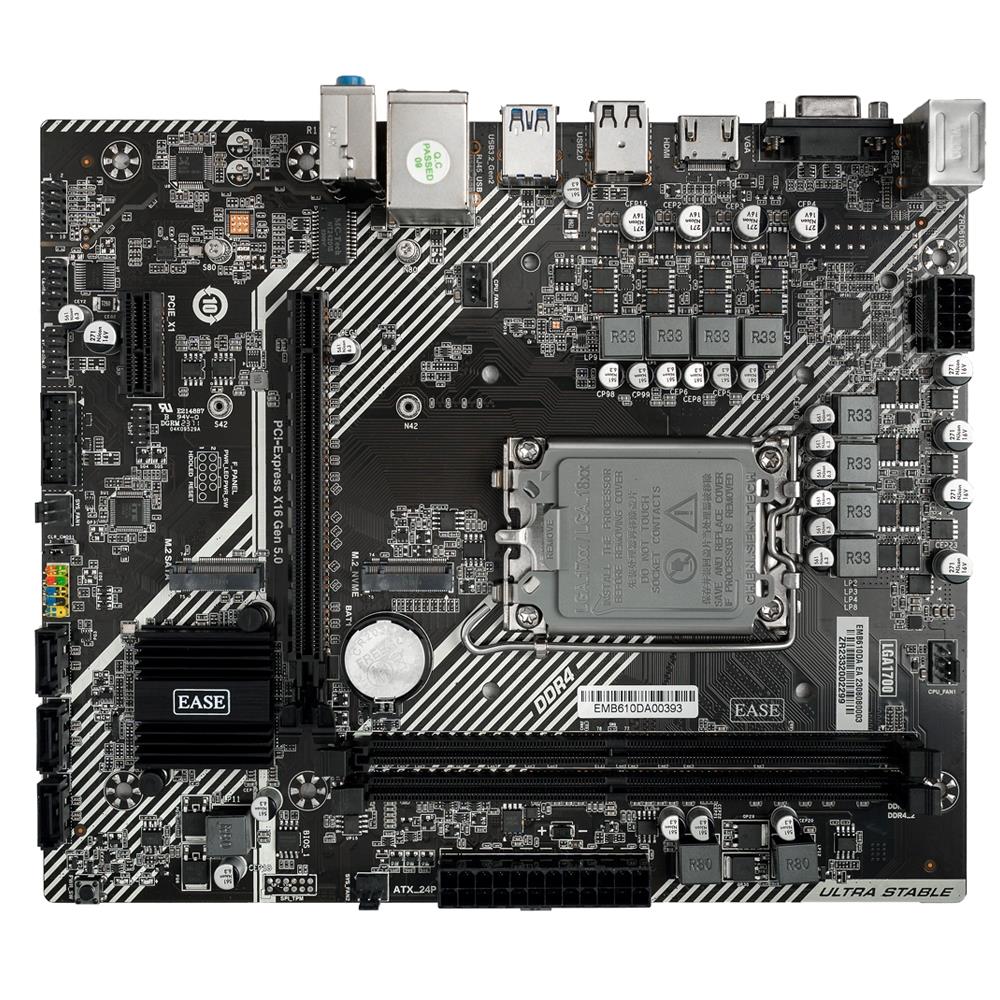

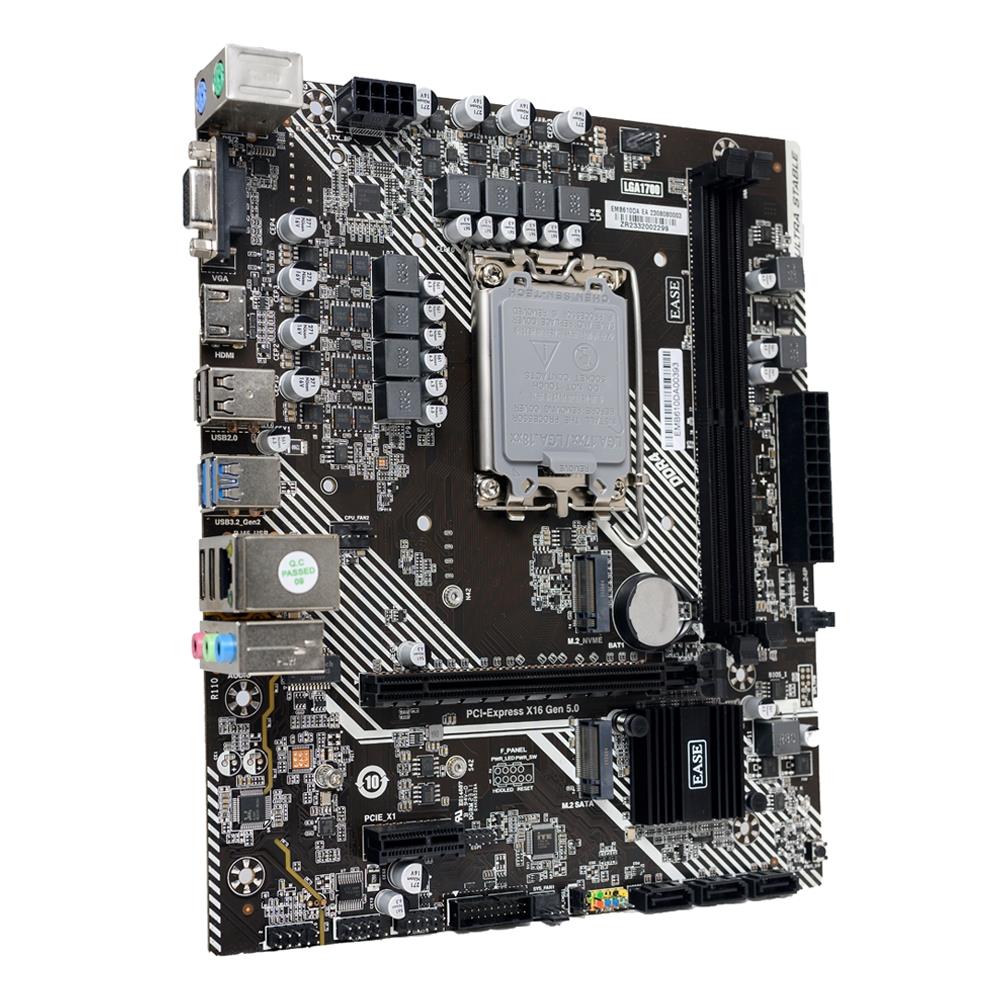

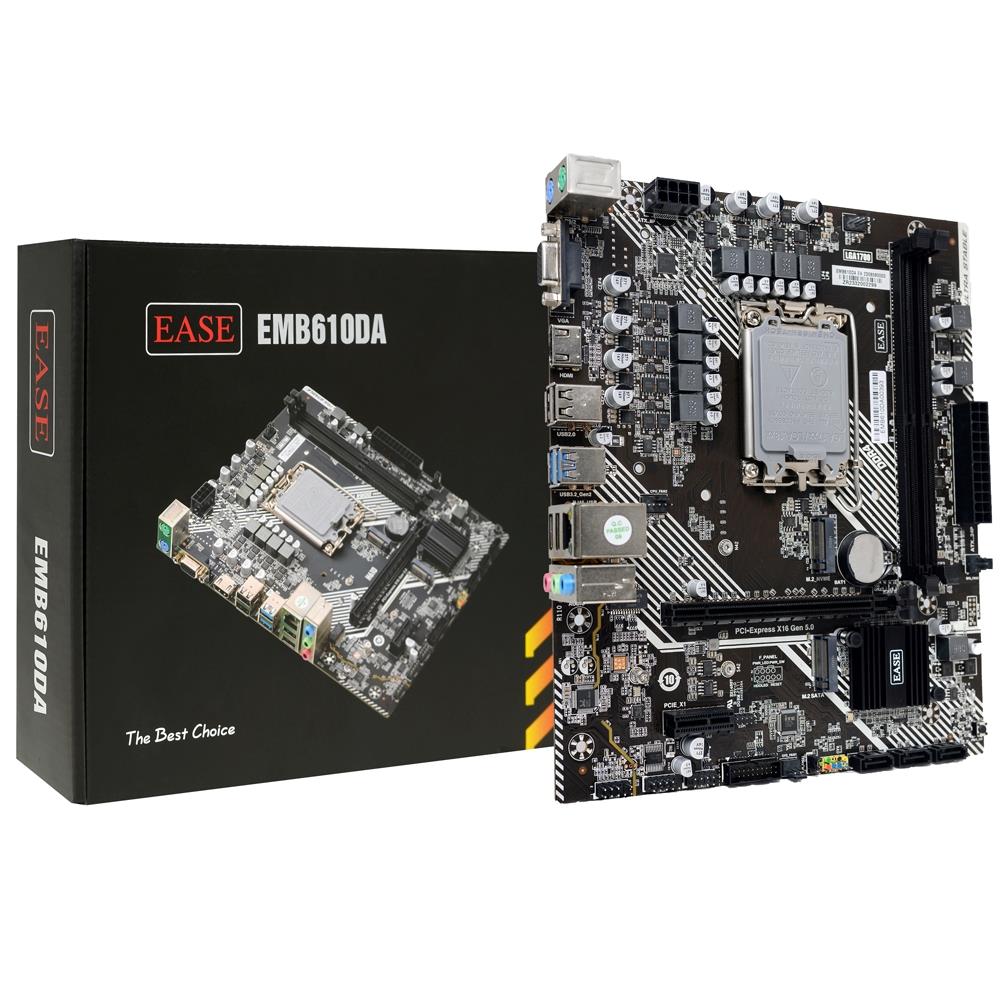

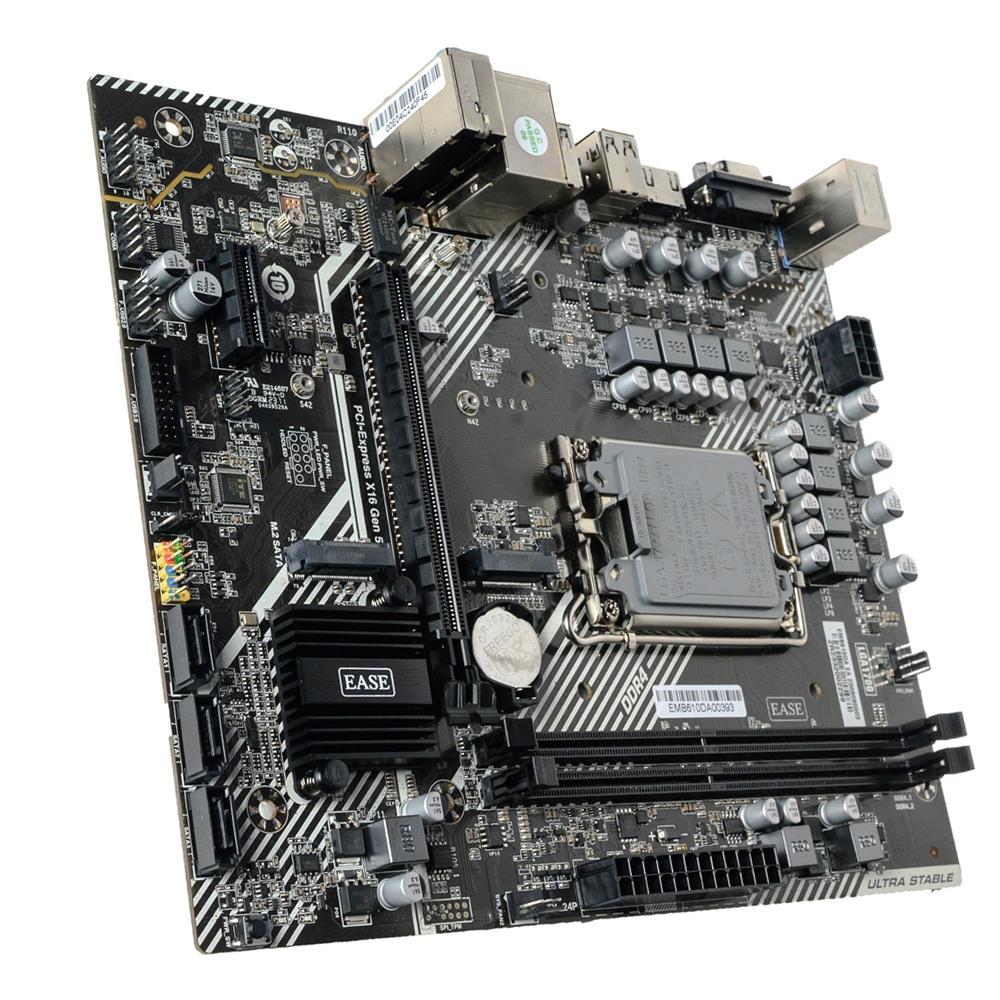

Brand: Ease
Model: EMB610DA
Processor: Support for 12/13th Gen Intel®Core™ i9/i7/i5/i3 processors in the LGA1700 Package.
Chipset: Intel® H61 Chipset
Memory: 2 x DDR4 2133/2400/2666/2933/3200MHZ DIMM Slot, Max. to 64GB
LAN: Supports Realtek® Gigabit LAN
Audio: Chip Integrated by Realtek®, Supports 6.0 Channel Audio Out
Storage Interface: 3 SATA 3.0 6Gb/s ports, 2 M.2 Slot (Support 2242, 2280 M.2 SSD)
Back Panel I/O: (1 PS/2 mouse & Keyboard port or 2 USB 2.0 Ports), 1 VGA Port, 2 USB 3.0 Ports, 1 LAN Jack, 1 HDMI Port, 4 USB 2.0 Ports, 3 Flexible Audio jacks
On-Board Connectors: 1 USB 3.0 Connector, 1 Front connector, 1 USB 2.0 Connector, 1 Front Audio Connector
Slots: 1*PCI-E x16 Slots, 1*PCI-E x1 Slot
Form Factor: Micro- ATX (23cm x 19.2 cm), 6 mounting holes
