Specifications

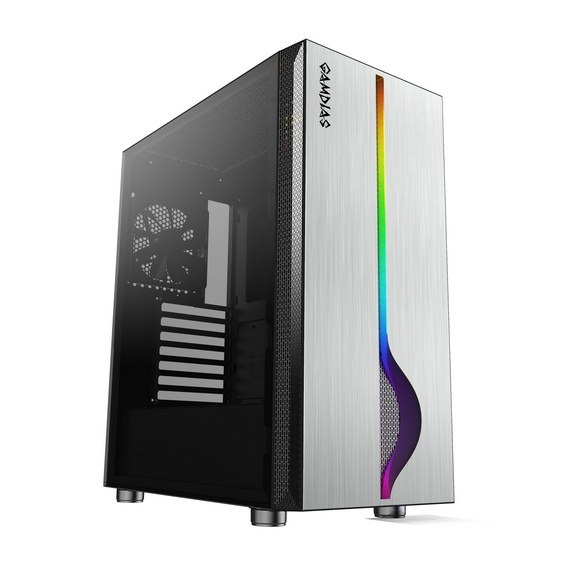

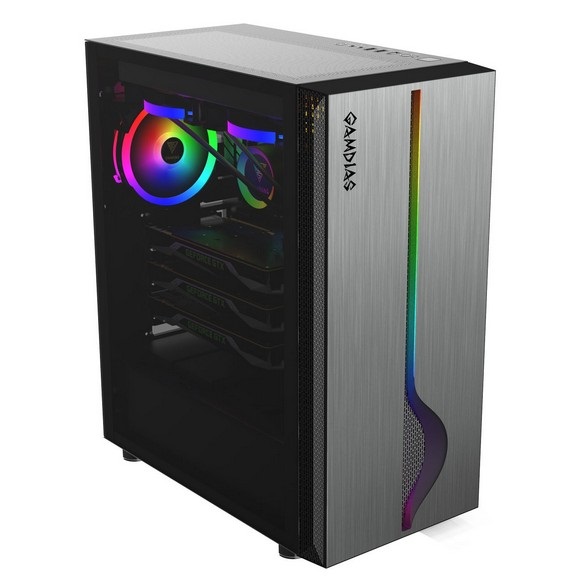

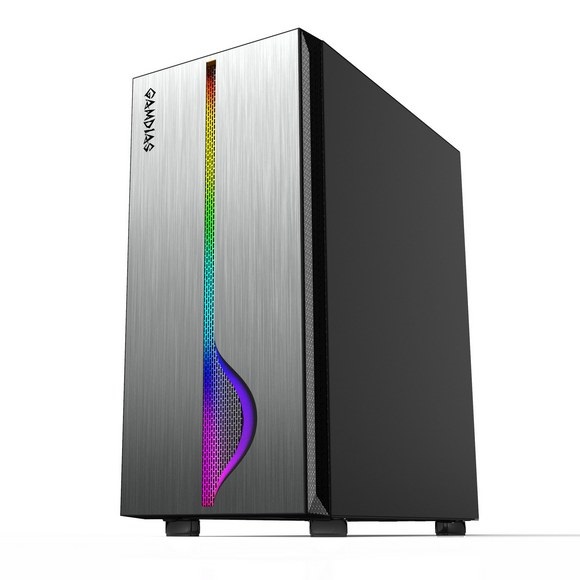

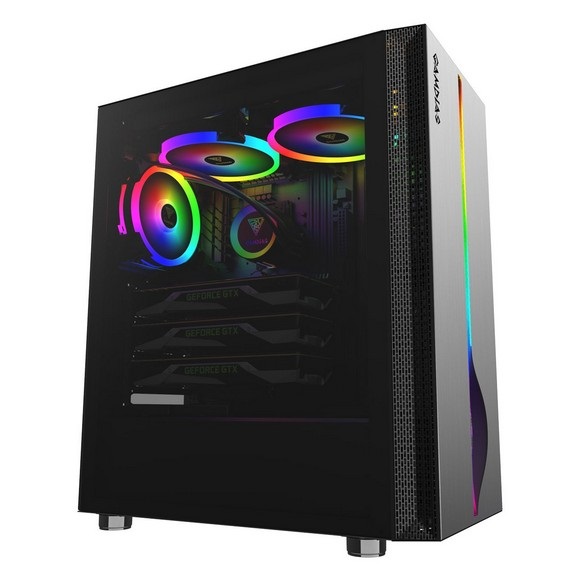

Product Name MARS M1
Case Type MID Tower
Motherboard Support mini-ITX, microATX, ATX
Synchronization 5V (3pin) with ASUS / MSI /ASROCK / GIGABYTE / BIOSTAR motherboard
Color Black
Expansion Slots 7
Material SPCC, ABS, Tempered Glass, Aluminum
Window Left
Radiator Support Top:280 mm
Front:280 mm
Rear:120 mm
Fan Support Top: 2 x 120mm , 2 x 140mm
Front: 3 x 120mm , 3 x 140mm
Rear: 1 x 120mm
Pre-installed Fans Rear: 1 x 120mm Fan
(The specification might be different for Brasil market)
Drive Bays 2 x 3.5" or 2 x 2.5" or 1 x 2.5"+1 x 3.5"(HDD Cage) 2 x 2.5"
I/O Port USB 3.0 x1, USB 2.0 x2, HD Audio x1, LED Control x1
Clearance CPU cooler height limitation: 160mm
VGA length limitation: 340mm
PSU length limitation: 170mm
Dimension(LxWxH) 402 x 210 x 475 mm
15.8 x 8.3 x 18.7 inch
Chassis Dimension (L x W x H) 360 x 210 x 458 mm
14.2 x 8.3 x 18 inch
Net Weight 6.3 kg / 13.9 lb
