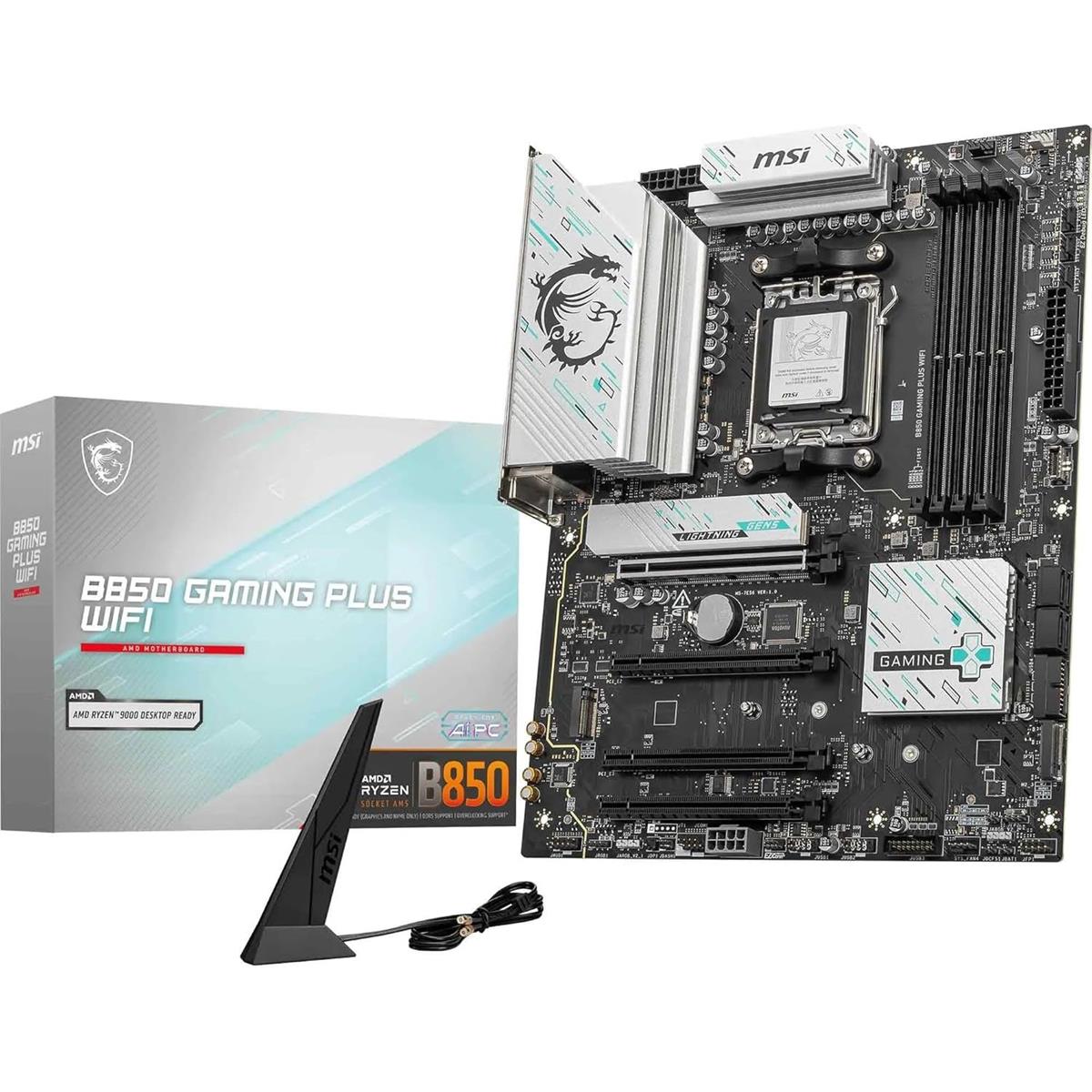

B850 GAMING PLUS WIFI
Win the Competition
The B850 GAMING PLUS WIFI is a gaming oriented ATX motherboard that is contructed with a 12 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5}
Ultra Power: 12 Duet Rail Power System with P-PAK, 6-layer with 2oz thickened copper PCB, Server Grade PCB material
4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8200+ MT/s OC)
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
Lightning Gen5 & Gen4 M.2 slots
High-speed Connectivity: Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
8-Channel (7.1) HD Audio with Audio Boost
EZ DIY: EZ PCIe Clip II, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The B850 GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD B850
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology, dual 8 pin power connectors and EZ OC Tuning functions, the B850 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
12 Duet Rail Power System (P-PAK)
2 Phase SOC Power
1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
1 x PCIe 4.0/3.0 x16 slot
2 x PCIe 3.0 x1 slots
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The B850 GAMING PLUS WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
1 x Gen4 x4 64Gbps slot
1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
High-speed Connectivity
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
