Integrated Cooling Features
Features VRM Cooling (extended heatsink & 7W/mK thermal pads), PCB Cooling, SSD Cooling and System Cooling
14+2 Phase VRM with 80A Smart Power Stage
With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B650 TOMAHAWK WIFI is able to sustain heavy CPU power loads (up to 170W) to support system-demanding game settings.
Supports AMD Ryzen 7000 Processors

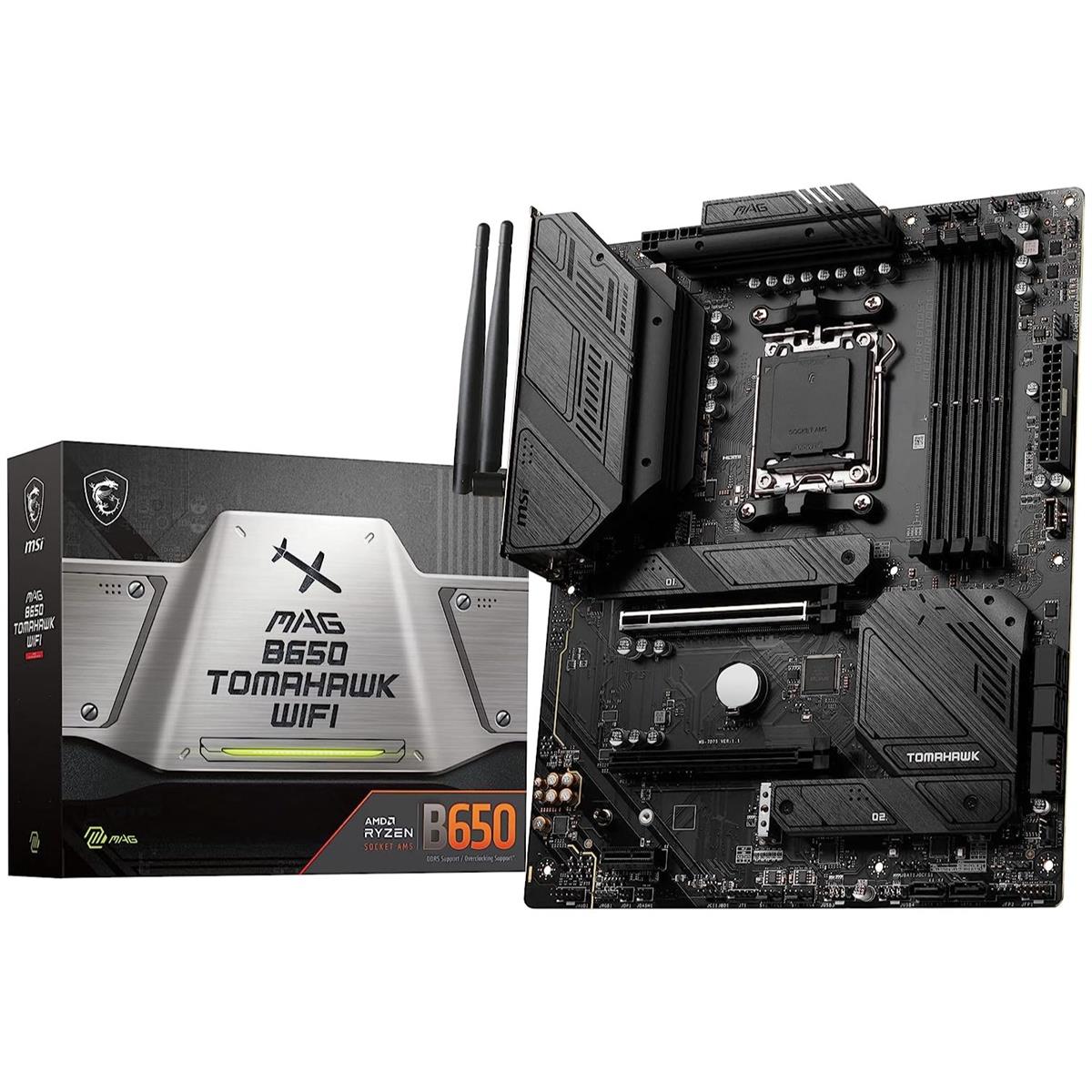

The MAG B650 TOMAHAWK WIFI ATX motherboard supports AMD Ryzen 7000 processors (AM5 Socket).
Memory Boost
4x DDR5 Dual Channel (6000 MHz Overclocked*): A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Bandwidth and Low Latency Network
Features Wi-Fi 6E, Bluetooth 5.2, 2.5G LAN, USB 3.2 Gen 2x2 Type-C, and HD Audio
M.2 Shield Frozr
M.2 Shield Frozr is MSI's most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Fortified PCI-e 4.0 x16 Slots
Features 2x PCI-e 4.0/3.0 x16 slots (primary with Steel Armor*) (*Support x16/x4)
Gen4 M.2 Connectors
The MAG B650 TOMAHAWK WIFI motherboard features MSI's latest M.2 slots: 3 x Gen4 x4 64Gb/s slots
