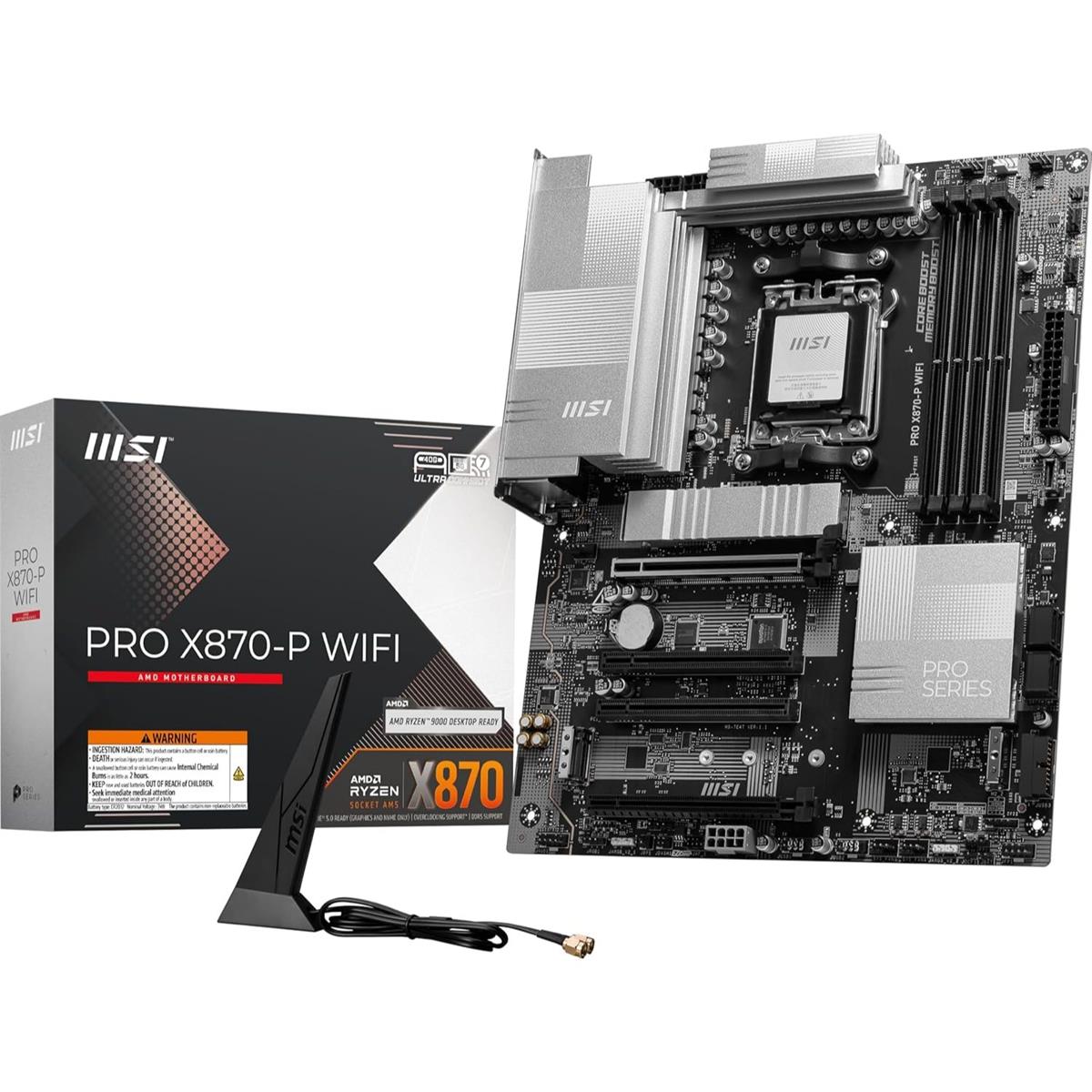

PRO X870-P WIFI
Business Elegance
The PRO X870-P WIFI is a creation-oriented ATX motherboard with a 14 Duet Rail Power System, constructed around the latest AMD X870 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors (Zen 5, Zen 4, AM5)
Ultra Power: 14 Duet Rail Power System with 60A SPS, 8-layer PCB, Server Grade PCB material
4 x DDR5 DIMMs with Memory Boost: Dual Channel (256GB Max. / 8200MT/s OC)
1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
Lightning Gen5 & Gen4 M.2 slots
Ultra Connect: USB4 Type-C (40Gbps), Realtek 5G LAN, Full-speed Wi-Fi 7 solution, Bluetooth 5.4
8-Channel (7.1) HD Audio with Audio Boost
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ Antenna
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The PRO X870-P WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: ATX
Socket Type: AM5
Chipset: AMD X870
Ultra Power - 14 Duet Rail Power System with 60A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO X870-P WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
14 Duet Rail Power System (60A / SPS)
2 Phase SOC Power
1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor**)
1 x PCIe 4.0/3.0 x16 slot*
2 x PCIe 3.0 x1 slots
*Supports x4/x2 (It will run at x2 speed when installing a device in M2_3.)
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The PRO X870-P WIFI motherboard features MSI's M.2 slots:
1 x Gen5 x4 128Gbps slots (with EZ M.2 Shield Frozr II)
1 x Gen4 x4 64Gbps slot
1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
Ultra Connect
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 4K/60Hz display support.
